VIBRATOMOS

VIBRATOME 900R REFRIGERATION 220V CE

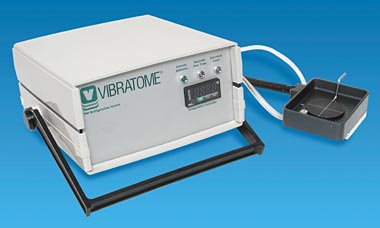

The new Vibratome 900R is a modular peltier refrigeration system that can be added to ANY Vibratome product. It utilizes the Deluxe bath system as standard which provides for greater specimen mounting space and repeatable specimen orientation. The unit will chill the Vibratome bath in the ranges of –10 degree centigrade to ambient temperature. It will maintain bath temperature to + or - .02 degrees. The system does require an external water source and drain as standard. However, an optional closed loop water system is available.

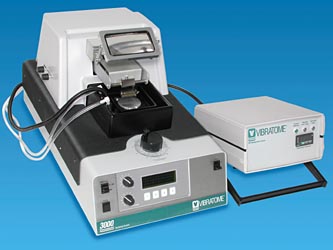

The 900R is a modular peltier-designed refrigeration system that will fit on any model Vibratome (it is included in the Professional Gold Package). It provides a chilled bath in the range of -10°C to ambient temperature. It will maintain bath temperatures to ±0.02°C. The device also allows greater specimen mounting space and repeatable specimen orientation. The system does require an external water source and drain.

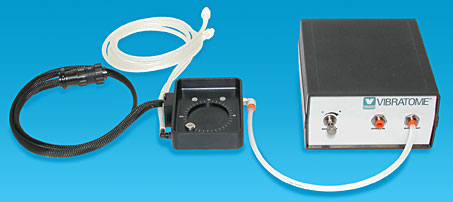

The 900R peltier refrigeration system is also available with this extra Aerator system which allows for purging the cooled bath with air or oxygen to further increase the working time on the fresh tissue.

The 900R Aerator System has the same Bath dimensions as the standard 900R Refrigerated Bath System but works with a modified bath. An extra Controller Box to regulate airflow or oxygen flow is provided with a single tube connection to the bath. Also, a set of tubes, from the bath, for standard connection to the Control Module, which is included. Temperature of the chilled bath is in the range of -10°C to ambient temperature and maintains bath temperatures to ±0.02°C. The system does require a pressurized air or oxygen source and an external water source/drain or water chiller in the case of hard water.
