MATERIAL
DE MICROSCOPIA ELECTRÓNICA: Accesorios para TEM y SEM
|
|
Round Wooden Applicator Sticks made of
birch wood, natural, not treated with chemicals. Size: 2.4x150
mm
|
|
Wooden Picks: Useful
for picking, cleaning, sorting and holding. Double pointed, 65mm
|
|
Stainless Steel Base
Molds, Tissue-Tek for use with embedding ring. Reusable.
Stainless Steel. Embedding rings will fit all sizes. Available
in 6mm, 12mm depth.
|

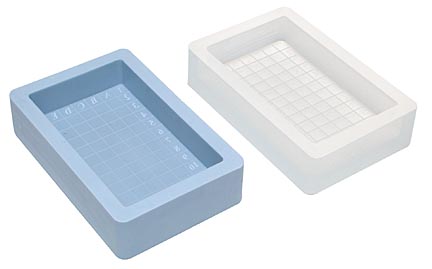

A New Deep Trough
Embedding Mold Alphanumeric
self-impression with raised ridge lines marking the 66 squares,
each 4.7mm square. Blue silicone rubber or translucent. Overal size:
4.45 x 6.99 x 1.59cm deep . Trough
Size: 3.5 x 6 x 1.1cm deep
|
|
Disposable Base Molds: Disposable
base molds offer ease and convenience of operation. They are
inexpensive enough to be discarded after use, yet strong enough
to be reused. Thanks to the specially formulated plastic
material, they offer excellent thermal exchange. They have a
smooth interior finish and rounded corners to facilitate their
removal. Also, they are available in the same variety of sizes
as metal molds and can be used with the same styles or types of
cassettes and embedding rings. |
Cryomolds
and Adapters, Tissue-Tek
for
use with Tissue-Tek® II M/C
Tissue-Tek®
Cryomold creates a uniformly shaped, flat-surface specimen
blocks with O.C.T. Compound for frozen sectioning. Disposable
plastic molds fit Cryobar freezing wells. Available in 3 sizes:
standard (25x20x5mm) fits directly into the Cryobar freezing
wells, biopsy (10x10x5mm) and intermediate (15x15x5mm) require
adapters for optimum uniform freezing in the Cryobar. Cryomolds are provided 100 per package. The
Cryobar adapters
are provided 12 per case
|
|
Cambridge, Leica, LEO, ZEISS,
Philips, FEI, CamScan, Tescan, ETEC, aluminum, grooved edge |
ZEISS (LEO) Mount (no chamfer on
leg), aluminum, grooved edge |
ZEISS, LEO, aluminum, grooved
edge |
AMRAY special slotted head,
aluminum, grooved edge |
Special Small Pin Stub for
Cambridge, Leica, ZEISS/LEO, FEI/Philips, CamScan, Tescan,
aluminum, grooved edge |
Cambridge, Leica,
ZEISS/LEO, FEI/Philips, CamScan, Tescan, aluminum, grooved edge |
Cambridge, Leica, ZEISS/LEO, FEI/Philips,
CamScan, Tescan, aluminum, grooved edge |
|
Cambridge, Leica, ZEISS/LEO, FEI/Philips,
CamScan, Tescan, aluminum, grooved edge |
Cambridge, Leica, ZEISS/LEO, FEI/Philips,
CamScan, Tescan, aluminum, grooved edge |
AMRAY, cambridge, Leica, ZEISS/LEO,
FEI/Philips, CamScan, Tescan, aluminum, 50.8mm dia. |
Low profile 45º SEM Mount, pin
leg fits into ZEISS/LEO and other SEM's
aluminum, grooved edge |
Low profile 45º / 90º SEM
Mount, pin leg fits into ZEISS/LEO and other SEM's aluminum, grooved edge |
Cambridge S-4, CamScan, aluminum,
31.7mm dia |
45º SEM Mount for
Cambridge,Leica, FEI,Philips, CamScan, Tescan, ETEC and Amray
SEM's aluminum, grooved edge |
|
45º / 90º SEM Mount for
Cambridge, Leica, FEI, Philips, CamScan, Tescan, ETEC, and Amray
SEM's Pin leg fits into LEO and other SEM's aluminum, grooved
edge |
AMRAY 1000/1200,
aluminum, 16.6mm H |
AMRAY
1000/1200/1400, aluminum |
|
JEOL, Aluminum
Specimen Mount 10x5mm |
JEOL, also used for ISI/ABT/TOPCON,
Aluminum Specimen Mount,
9.5x9.5mm |
JEOL, Aluminum
Specimen Mount 12.2x5mm |
JEOL, Aluminum
Specimen Mount, 12.2x10mm |
JEOL
Large and Metallurgical
JEOL, Aluminum Specimen
Mount, 25x5mm |
| JEOL
Large Specimen and Metallurgical
JEOL,Aluminio,
25x19.7mm |
SI/ABT/TOPCON,
also used for JEOL
Aluminum Specimen Mount, 15
x 15mm
|
ISI/ABT/TOPCON,
also used for JEOL
Aluminum Specimen
Mount, 15 x 10mm
|
ISI/ABT/TOPCON,
also used for JEOL
Aluminum
Specimen Mount, 15 x 5mm
|
Large Specimen and
Metallurgical Mount
Aluminum
Specimen Mount, 23.7 x 9.5mm
|
Specimen Mounts for all Hitachi
SEM's with M4 threads
Aluminum Specimen
Mount, M4, 25x6mm
|
Specimen Mounts for all Hitachi
SEM's with M4 threads
Aluminum
Specimen Mount, M4, 25 x 6mm
|
JEOL and
ISI/ABT/Topcon
45° SEM Specimen
Aluminum Specimen Mount, 45°,
15x10mm
|
AMRAY 1000, 2000
Graphite Specimen Mount
(12.7mm dia. x 3.2mm pin)
|
Cambridge, Camscan, FEI,
Leica, LEO, Philips, Zeiss
Graphite
Mount 12.7mm dia.x 3.2mm pin, Grooved Head
|
| Cambridge
S-4, Camscan
Graphite Mount
31.7mm, Cambridge S-4
|
Hitachi
Graphite Mount,
Hitachi, Int. Thread (M4), 25mm dia. Graphite
|
JEOL and others
Graphite
Mount 12.2mm dia. x 10mm length
|
SEM, Scanning Electron Microscopy

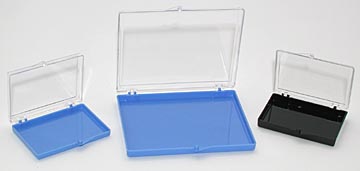

Specimen Mount Storage Plastic Box with
SEM Cylinder Mount Specimen Holder |
SEM, Scanning Electron Microscopy
Specimen Mount Storage. Plastic Box with SEM
Pin Mount Specimen Holder
|
|
The simplicity of application, and smooth, clean
surfaces of the static-free PELCO Tabs™, Carbon Conductive Tabs
are a significant improvement compared to many of the other common
adhesives that have been used in microscopy mounting. Both tab
sides have a thick conductive adhesive (conductive inner film is
35µm and the adhesive is 45µm on each side for a total of 125µm
[5 mils]) with a liner on both sides, a transparent liner and
white liner respectively. They are ready for immediate use. On the
other hand, the top liner does not have to be removed until the
sample is ready to be mounted. This reduces possible contamination.
Outgassing is negligible. Application of the tab to a mount or surface may be done slowly
and carefully to maintain surface smoothness. The conductive adhesive is a carbon filled acrylic glue, free of
solvents. It can be removed from the specimen mount with ethyl
acetate, ethanol, isopropanol or alcohols. Temperature maximum is
60°C (140°F). Small impurities of Si, Sb, S and very small
impurities of Fe, Mg and Na can be found. This product may also be used for gunshot residue analysis. Many
laboratories use these tabs for SEM in a large diversity of
applications. Refrigeration will increase shelf life but a warm up
period of one hour is then required before use. The specimen
should be placed on the surface under the white liner. |
Carbon Conductive Tape, Double
Coated
|
|
a reliable conductive ground path
for SEM specimens
Air drying silver to make effective ground. Curable at room
temperature and has high adhesion to any material. Surfaces do not
have to be prepared prior to application and will adhere to such
materials as polymer (phenolic) boards, ceramic, glass, metal,
plastic and fiberglass. It should be mixed or spatulated well
before using. The container is offered in two sizes (15g and 30g) and is
provided with an applicator brush. Silver flake grain size is an
average of 80%, <1.0µm. Sheet resistance is 0.02 ohms per
square @ 1 mil (0.001” = 0.025mm) thickness and is a function of
the coating. |
Two Types:
silver resin paste / liquid hardener: H-22 Epo-Tek® (100:4.5
ratio)
silver resin paste / silver resin paste hardener: H20E Epo-Tek®
(1:1 ratio)
General Properties
100% solids, two component silver filled epoxy with a soft, smooth,
thixotropic (becoming less viscous when stirred or shaken)
consistency designed specifically for chip bonding in
microelectronic and optoelectronic applications.
Excellent handling, extremely long pot life at
room temperature for this electrically conductive silver adhesive.
High speed epoxy chip bonding systems are suitable for very fast
cures, such as fast circuit repairs. Can be screen printed,
machine dispersed or stamped and can withstand wire bonding
temperatures in the range of 300 - 400°C.-
|
Circuit Repair with handy conductive pens.
Silver Conductive Pens
Draws highly conductive silver traces, jumpers
and shielding with high precision. Instantly creates conductive silver traces.
Dries in minutes at room temperature. Valved pen tip for easy application.
Can be soldered at low temperature. Speeds prototype and design. Choice of tip sizes
|
Fast Drying Silver Paint
This very fine flake silver is suspended in Iso-Butyl
Methyl Ketone (4-Methylpentan-2-one) and forms a thin, smooth,
highly conductive silver film which is both adherent and flexible.
30g.
|
|
|
carbon base, good conductivity, large
specimens.
LEIT-C-Plast™ is a conductive adhesive that can be molded. Because of
its relatively heavy paste consistency, larger samples can be held
stationery for long periods when mounted on an electrical conductive
adhesive station for SEM studies. The plasticity is permanent. It is not
affected by high vacuum conditions and shows no peaks in energy
dispersive X-ray microanalysis. Heavy specimens may also be prepared for
viewing in an SEM using Tempfix™ (or the Glue Gun - see details in our
non-conductive section) and LEIT-C-Plast™. First the specimen is fixed
into place with Tempfix™ or the Glue Gun. Afterward, an electrically
conductive bridge is made between specimen mount and specimen using LEIT-C-Plast™.
It is not required to wait for drying because neither adhesive outgasses.
LEIT-C-Plast™ was originally developed for holding specimens on angled
specimen holders. The adhesive is offered in a roll form and is black. Flat plates are
provided for working the material. May be applied with a spatula.
|
|
